LGA1700/B760/ DDR5/ 1xHDMI, 1xDP/ mATX/ WiFi AX, BT
La TUF GAMING B760M-PLUS WIFI toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con funciones gaming y durabilidad probada. Esta placa base está diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, para ir superar cualquier expectativa con un rendimiento de gran estabilidad ideal para las maratones de juegos. Las placas base TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones que otras no. Estéticamente, este modelo incorpora una placa con el nombre en relieve y elementos de diseño geométrico para reflejar la fiabilidad y estabilidad que definen la serie TUF GAMING.. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. . . Chipset. . Intel® B760 Chipset. . Memory. . 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 1 x DisplayPort**. 1 x HDMI™port***. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. . ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. . ***Supports 4K@60Hz as specified in HDMI 2.1. . . Expansion Slots. . Intel® 13th & 12th Gen Processors. 1 x PCIe 5.0 x16 slot. Intel® B760 Chipset. 1 x PCIe 4.0 x16 slot (supports x4 mode). 1 x PCIe 4.0 x1 slot. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® 13th & 12th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. TUF LANGuard. . Wireless & Bluetooth. . Wi-Fi 6. 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2*. *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer"s website for the latest specifications.. . USB. . Rear USB (Total 8 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 2 x USB 2.0 ports (2 x Type-A) . Front USB (Total 7 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports*. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback "". Audio Features . - Audio Shielding. - Rear optical S/PDIF out port. - Premium audio capacitors. - Dedicated audio PCB layers. . Back Panel I/O Ports. . 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 2 x USB 2.0 ports (2 x Type-A) . 1 x DisplayPort. 1 x HDMI™ port. 1 x Wi-Fi Module. 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks . 1 x Optical S/PDIF out port. Internal I/O Connectors. I/O Connectors Fan and Cooling related . 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power related . 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 1 x 4-pin +12V Power connector. Storage related . 2 x M.2 slots (Key M) . 4 x SATA 6Gb/s ports. USB . 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) . 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x AURA RGB header. 1 x Clear CMOS header. 1 x Front Panel Audio header (AAFP) . 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ (USB4®) header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . mATX Form Factor. 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
La TUF GAMING B760M-PLUS WIFI toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con funciones gaming y durabilidad probada. Esta placa base está diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, para ir superar cualquier expectativa con un rendimiento de gran estabilidad ideal para las maratones de juegos. Las placas base TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones que otras no. Estéticamente, este modelo incorpora una placa con el nombre en relieve y elementos de diseño geométrico para reflejar la fiabilidad y estabilidad que definen la serie TUF GAMING.. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. . . Chipset. . Intel® B760 Chipset. . Memory. . 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.. . Graphics. . 1 x DisplayPort**. 1 x HDMI™port***. * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. . ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. . ***Supports 4K@60Hz as specified in HDMI 2.1. . . Expansion Slots. . Intel® 13th & 12th Gen Processors. 1 x PCIe 5.0 x16 slot. Intel® B760 Chipset. 1 x PCIe 4.0 x16 slot (supports x4 mode). 1 x PCIe 4.0 x1 slot. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Storage. . Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® 13th & 12th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. TUF LANGuard. . Wireless & Bluetooth. . Wi-Fi 6. 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2*. *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer"s website for the latest specifications.. . USB. . Rear USB (Total 8 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 2 x USB 2.0 ports (2 x Type-A) . Front USB (Total 7 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports*. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback "". Audio Features . - Audio Shielding. - Rear optical S/PDIF out port. - Premium audio capacitors. - Dedicated audio PCB layers. . Back Panel I/O Ports. . 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 2 x USB 2.0 ports (2 x Type-A) . 1 x DisplayPort. 1 x HDMI™ port. 1 x Wi-Fi Module. 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks . 1 x Optical S/PDIF out port. Internal I/O Connectors. I/O Connectors Fan and Cooling related . 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power related . 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 1 x 4-pin +12V Power connector. Storage related . 2 x M.2 slots (Key M) . 4 x SATA 6Gb/s ports. USB . 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) . 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x AURA RGB header. 1 x Clear CMOS header. 1 x Front Panel Audio header (AAFP) . 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ (USB4®) header. . BIOS. . 128 Mb Flash ROM, UEFI AMI BIOS. . Manageability. . WOL by PME, PXE. . Form Factor. . mATX Form Factor. 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Chipset: Intel B760
- Formato: Micro ATX
- Hdmi: Si
- Imagen Salida: Graficos en CPU, HDMI, Displayport
- Memoria Maxima: 192GB
- Microprocesador Integrado: No
- Multi-Grafica: No
- N Bancos De Memoria: 4
- N Conexiones SATA: 4
- N USB 2.0: 2 Traseros, 4 Internos
- N USB 3.2 Gen1: 3 Traseros, 2 Internos
- N USB 3.2 Gen2: 2 Traseros, 1 Tipo C Trasero, 1 Tipo C Interno
- Pci: 1 PCIe 5.0 x16 , 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
- Raid: Si
- SATA 6Gb/S: 4
- Socket: Intel LGA 1700
- Tecnologia De Memoria: DDR5
- Tipo De Raid: 0,1,5,10
- USB3.1 Interno: Si

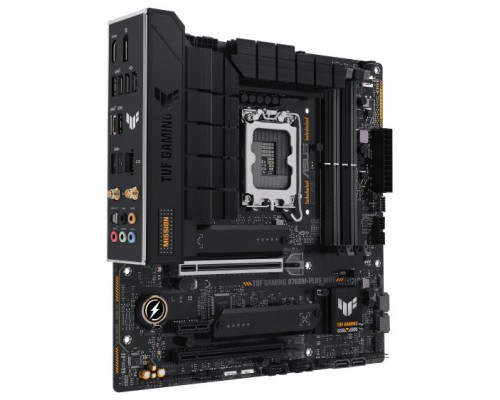

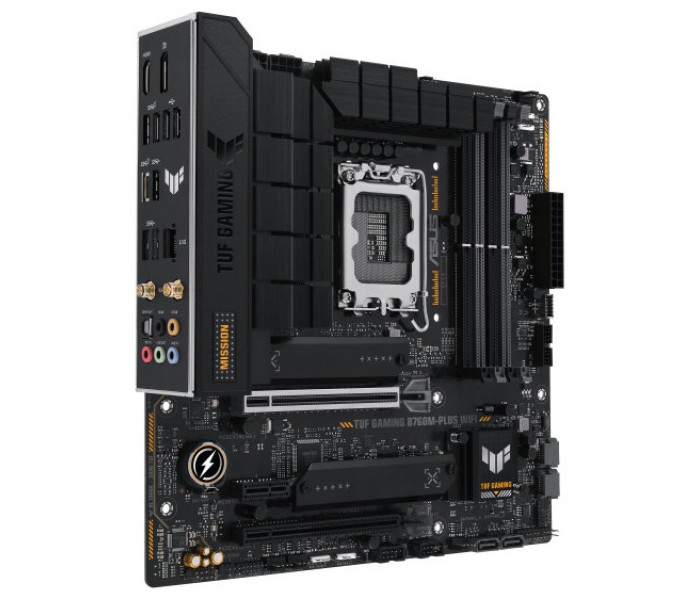

PLACA BASE TUF GAMING B760M-PLUS WIFI ASUS (Espera 4 dias)
- Marca: Asus
- Código: 90MB1ET0-M1EAY0
- Disponibilidad: 10
-
255.90€
- Sin IVA: 211.49€
